repeater wires

Posted: Fri May 03, 2013 2:29 am
by bkwagonss
Hey Paul, welcome to the New Caprice forum.

I'm having a heck of a time trying to figure out which wire(color) goes to the corner turn signal light in the headlight housing.
I assume it's one of the wires in the headlight housing connector.

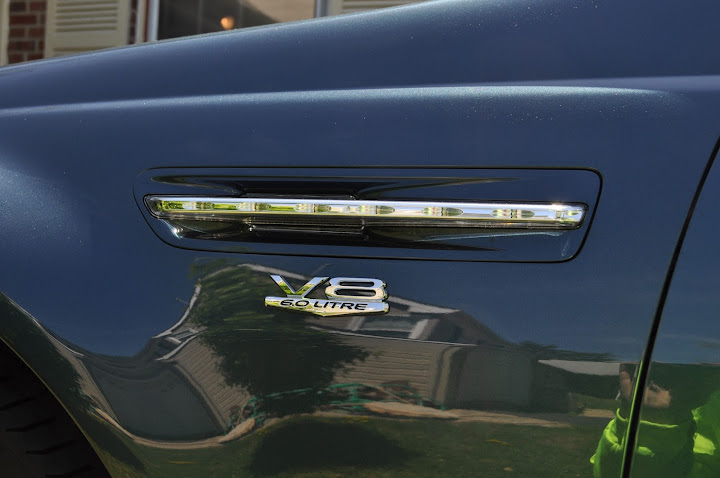

I ran a wire from the side marker/repeaters to the headlight so I could hook them up to the turn signals.


Re: repeater wires

Posted: Fri May 03, 2013 2:42 am
by Tom Slick
Where can I get a set of those?

Later,
Tom Slick

Re: repeater wires

Posted: Fri May 03, 2013 4:39 am
by bkwagonss
I got them from Paul.

Re: repeater wires

Posted: Fri May 03, 2013 4:48 am
by Crazy Paul
bkwagonss wrote:I'm having a heck of a time trying to figure out which wire(color) goes to the corner turn signal light in the headlight housing.
I assume it's one of the wires in the headlight housing connector.
If it's the same as a Holden WM Caprice Series1 (???????????) then at the 10 Cavity Connector for each Headlamp.
Left Headlamp, Left Front Turn Signal Supply Voltage = Pin 9 = Light Blue Wire with a White Trace.
Right Headlamp, Right Front Turn Signal Supply Voltage = Pin 9 = Dark Blue Wire with a White Trace.

Re: repeater wires

Posted: Fri May 03, 2013 5:51 am
by bkwagonss
Cool, thanks Paul, I'll look tomorrow.

Re: repeater wires

Posted: Fri May 03, 2013 2:15 pm
by Tom Slick
Hey Paul,

I need to see about getting a set of those... do they come in chrome? If so, I'd like to get the chrome door handle covers to go with them... :-)

Later,
Tom Slick

Re: repeater wires

Posted: Fri May 03, 2013 6:32 pm
by Pursuit
Paul, I would be interested in a set of the side marker repeaters also!

Thanks,

Maurice

Re: repeater wires

Posted: Fri May 03, 2013 9:22 pm
by Crazy Paul
Tom Slick wrote:Hey Paul,
I need to see about getting a set of those... do they come in chrome? If so, I'd like to get the chrome door handle covers to go with them... :-)
Pursuit wrote:Paul, I would be interested in a set of the side marker repeaters also!
The top and bottom horizontal surfaces are chrome from factory. The outer bezel is plain white plastic = requires painting to suit car body.


Re: repeater wires

Posted: Fri May 03, 2013 9:31 pm
by Crazy Paul
I can do a pair of the Holden Caprice side indicator (repeaters) complete with a pair of wiring connectors for US$333 total shipped.
Airfreight ETA is 14 days.
My Paypal ID is pjsadler@iinet.net.au
E-mail address is also pjsadler@iinet.net.au


The wiring connectors are approx 6" long and plug into the odd shaped connectors on the inside of the repeaters. You can then run new wiring back to within 6" from the repeater and make your new wiring connection on each side of the car.

Re: repeater wires

Posted: Fri May 03, 2013 9:39 pm
by Tom Slick
I guess I'll have to hold off for a little while...

Just spent a nice chunk of change getting some headwork done for my Shelby!

Later,
Tom Slick
